Usage

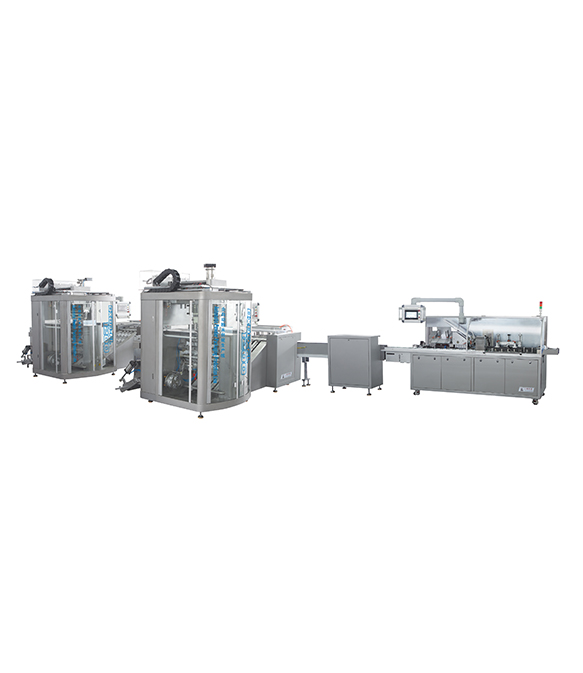

DXD-FL1200E Multi-Line Powder Sachet Packing Production Line is suitable for four-side sealed small powder sachets in pharmaceutical, food, cleaning, detergent, drinks, dairy and seasoning industries, applicable to loose non-adhesive powdered materials such as medicinal powders, food powders, dissolving medicines, detergent powder and seasoning powder. It supports automatic cartoning after sachet packaging, suitable for mass continuous production of powder sachets.
Characteristics
Fully automatic integrated production line, integrating dynamic online weight detection, automatic waste rejection, bag forming, measuring, filling, sealing, printing/embossing, tear cutting, punching, conveyor transfer, single-bag weighing, missed-bag rejection, finished bag sorting, automatic carton forming, pouch carton loading, carton printing, carton sealing and finished product output, all procedures finished in one continuous automatic operation.
Comply with GMP production standards, achieve high production efficiency and precise weight control with weighing accuracy up to 0.02g, greatly reduce labor cost.
Support customized flexible design modification according to customer actual production demands, customization service is available.
Adopt four-side sealing packaging structure, match various heat-seal composite film materials including PET/AL/PE, PET/PE, NY/AL/PE, NY/PE, OPP/PE, PET/plated AL/PE.
Equipped with matching automatic cartoning machine (Model SYZ-150) to realize fully automatic sachet-in-carton production line.
Complete service system: provide pre-sale customized technical scheme, in-factory full-process inspection, one-year warranty after acceptance, online video or on-site after-sales service.
Main Technical Parameters
| Item |
Parameter |
| Model |
DXD-FL1200E |
| Pouch length range |
50-120mm (adjustable) |
| Pouch width range |
60-105mm (adjustable) |
| Max film width |
1200mm |
| Packing speed |
30-50 times/min per lane |
| Filling capacity |
1-30ml /bag |
| Sealing Type |
Four-Side Sealing Packaging |
| Applicable film |
PET/AL/PE, PET/PE, NY/AL/PE, NY/PE, OPP/PE, PET/plated AL/PE |
| Item |
Parameter |
| Weighing Accuracy |
0.02g |
| Total production capacity |
30-150 boxes/min |
| Electric source |
380V 50HZ |
| Total power |
35KW |
| Compressed air working pressure |
0.7Mpa |
| Air consumption |
0.8M³/Min |
| Package gross weight |
2000.000kg |
| Overall package size |
200.00cm180.00cm220.00cm(L×W×H) |
| Certificate |
CE, SGS |
| Origin |
Zhejiang, China |
| HS Code |
8422303090 |
| Annual production capacity |
500 Pieces/Year |
| Warranty period |
1 year starting from SAT finish |
| MOQ |
1 Set |
| Unit price range |
US$100,000.00-300,000.00 |
| Delivery time |
50-150 days after receiving deposit |
