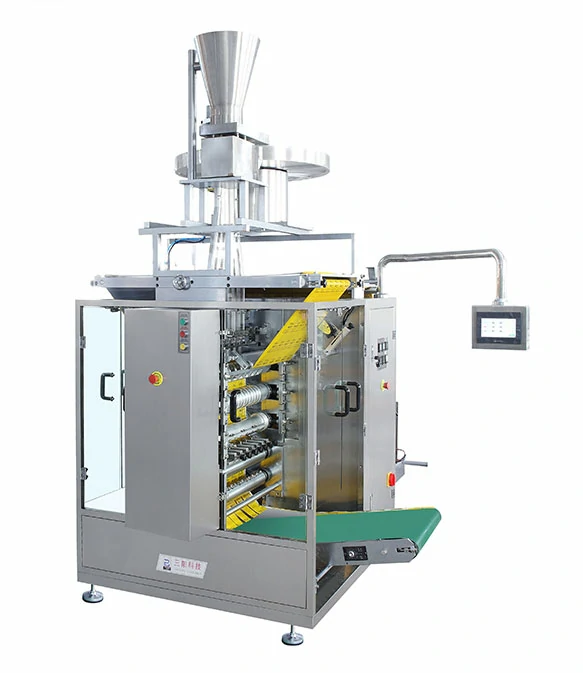

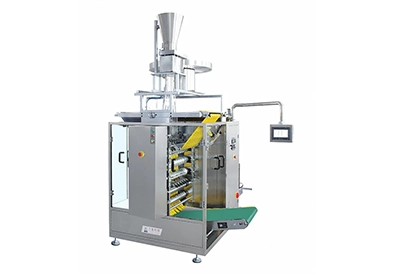

You're running a packaging operation that handles multiple products—different tablet sizes, various sachet formats, and frequent changeovers between runs. A tablets packaging machine that can't adapt to different products without major downtime becomes a bottleneck rather than a solution. The DXDO-P900E tablets sachet packaging machine was engineered with versatility as a priority: tool-free pouch length adjustment that eliminates mold changes, six lanes that can run independently, and compatibility with a wide range of films and products. This article walks through what makes this machine capable of handling diverse packaging requirements—from the simple pouch length adjustment to the photoelectric tracking that ensures consistent quality across different printed films.
Q: How quickly can the machine switch between different pouch sizes?
A: The machine is designed for easy adjustment with a simple procedure for pouch length adjustment without changing the mould . Changeovers that take hours on other machines are completed in minutes, maximizing uptime and allowing you to run smaller batches economically.
Q: What products and materials can the machine handle?
A: The machine is suitable for medicine, food, and daily-use chemical industries , with a particular focus on unbonded pills . Compatible films include PET/AL/PE, PET/PE, NY/AL/PE, and NY/PE , covering most pharmaceutical and food packaging requirements.
One of the most time-consuming aspects of sachet packaging is changing between different pouch sizes. The DXDO-P900E addresses this with a simple procedure for pouch length adjustment without changing the mould .
Traditional sachet machines require physical mold changes to switch between bag sizes—a process that can take hours and requires specialized tools. The DXDO-P900E eliminates this step entirely. You simply adjust the pouch length setting, and the machine handles the rest. Changeovers that used to take hours are reduced to minutes.
The machine produces pouches with length from 50-150mm and width from 40-105mm . This range covers most sachet applications, from small pharmaceutical doses (50-60mm) to larger food and daily chemical sachets (up to 150mm). One machine, multiple product formats.
The DXDO-P900E features 6 lanes . Each lane operates independently, giving you flexibility in how you use the machine.
With six independent lanes, you can run different products or batch sizes simultaneously. If one lane needs adjustment or maintenance, the others keep running—minimizing downtime and maximizing overall equipment effectiveness.
Each lane runs at 30-40 bags per minute . Total output ranges from 180 to 240 bags per minute —up to 14,400 sachets per hour. For high-volume products, this capacity ensures you can meet demand without adding extra machines.
The DXDO-P900E uses roller heat sealing with four-side sealing technology. Four-side sealing means each sachet is sealed on all four edges, creating a stronger, more professional package.
Roller heat sealing applies consistent temperature and pressure across the entire seal area as the film moves continuously. The system adjusts to different film materials—PET/AL/PE, PET/PE, NY/AL/PE, NY/PE —providing reliable seals across the full range of compatible films.
Four-side sealing provides better protection against moisture and contamination compared to three-side or pillow-style packaging. For pharmaceutical tablets and food products, this means longer shelf life and better product integrity.
The DXDO-P900E is equipped with photoelectric tracking and PLC control systems that ensure consistent quality across different products and printed films.
The machine adopts photoelectric tracking to ensure automatic correction of double-face printed designs on packaging bags. This means printed registration marks stay aligned with the cut and seal positions, even on pre-printed film—critical for brand consistency across different product lines.
A PLC is used for automatic control, and the man-machine interface controls all functions including longitudinal sealing, transverse sealing, filling, notch cutting, longitudinal cutting, fracture line making, and transverse cutting . Operators can set up and adjust the machine without specialized training, reducing the learning curve for new products.
| Parameter | DXDO-P900E Specification |
|---|---|
| Lanes | 6 |
| Bag Length | 50-150mm (adjustable) |
| Bag Width | 40-105mm |
| Packing Speed | 30-40 bags/min per line |
| Measuring Range | 1-80ml |
| Sealing Fashion | 4-side sealing |
| Cutting Fashion | Flat cutting |
| Applicable Film | PET/AL/PE, PET/PE, NY/AL/PE, NY/PE |
| Max Film Roll Width | 900mm |
| Max Film Roll Diameter | Φ300mm |
| Film Roll Core Diameter | Φ75mm |
| Power Voltage | 380V / 3 phase 4 wires 50Hz |
| Power | 12KW |
| Package Size (L×W×H) | 1650×1500×2200mm |
| Gross Weight | 1500KG |
The DXDO-P900E is suitable for a wide range of products and industries :
The machine is particularly suitable for all kinds of proprietary Chinese medicines and water pills . For pharmaceutical manufacturers, the machine's precision filling, four-side sealing, and tool-free changeover ensure product integrity and packaging compliance.
For food and supplement manufacturers, the machine handles a range of granular and tablet products. The measuring range of 1-80ml covers most single-serve applications—from small nutrient doses to larger food sachets.
The machine is also suitable for daily-use chemical products that require sachet packaging. The wide range of compatible films provides flexibility for different product requirements.
Q: How many lanes does the DXDO-P900E have?
A: The machine features 6 lanes .
Q: What is the packing speed?
A: Each lane runs at 30-40 bags per minute , depending on pouch size and material.
Q: How does the machine handle pouch size changes?
A: The machine allows bag length adjustment without changing the mould , reducing changeover time significantly.
Q: What sealing technology does the machine use?
A: The machine uses roller heat sealing with four-side sealing .
Q: What films are compatible with the machine?
A: Compatible films include PET/AL/PE, PET/PE, NY/AL/PE, and NY/PE .
Q: What is the maximum film roll width?
A: The machine accepts film rolls up to 900mm in width.
Q: What products is the machine suitable for?
A: The machine is suitable for medicine, food, and daily-use chemical industries , particularly for unbonded pills and small bag packaging.
A tablets packaging machine that combines flexibility, tool-free changeover, and reliable sealing is the foundation of any efficient packaging operation. The DXDO-P900E delivers six lanes, four-side sealing with roller heat sealing technology, pouch length adjustment without mold changes, and PLC control with a man-machine interface—all in a machine built for the demands of pharmaceutical, food, and daily chemical packaging.
Whether you're packaging Chinese patent medicines, nutritional supplements, or food sachets, the DXDO-P900E offers the versatility and capacity that production managers need. With a film width of up to 900mm and a measuring range of 1-80ml, it covers most sachet applications without requiring multiple machines for different products.
Contact the manufacturer for a custom packaging consultation → their team can help you evaluate your product requirements, select the right lane configuration, and optimize the machine for your specific packaging needs. Get a tablets packaging machine that adapts to your products, not the other way around.
