You're standing on a production floor, watching bags of tablets roll off the line, and you realize the equipment is doing more work than half your team. An automatic tablets production line isn't supposed to be complicated—it's supposed to eliminate complexity. But too many systems trade one set of headaches for another: difficult changeovers, finicky sealing, constant adjustments. So what does "simple" actually look like in a high-speed packaging environment? It looks like a line that feeds, opens, boxes, codes, seals, and handles waste without you babysitting every step. It looks like a machine that switches between bag sizes without a mold change. And it looks like an interface that doesn't require a degree in programming to operate. This article walks through the real-world features that make a tablets production line genuinely straightforward—from changeover flexibility to sealing reliability to the control systems that keep everything running smoothly.
Q: How do I know if a production line can handle my product without frequent jams?
A: Look for systems with photoelectric eye automatic detection and tracking. This feature ensures empty packages don't fall into the carton, which saves material and prevents jams that slow down your line. The DXD-PL1200 uses this technology to keep production flowing without constant operator intervention.
Q: What about changeovers—how long does it take to switch between different tablet sizes or bag formats?
A: The key is tool-less adjustment. Systems that require mold changes add hours to every switchover. The DXD-PL1200 is designed so you can switch between different specifications and sizes with only fine-tuning required—no mold change needed. That means changeovers measured in minutes, not hours.
Walk up to a well-designed production line, and you shouldn't need a manual to figure out where things go. The DXD-PL1200 features a compact and exquisite layout that puts every critical point within easy reach. The feeding station is accessible. The sealing section is visible. The cartoning unit flows naturally from the sachet output.
This isn't just about aesthetics—it's about operator efficiency. When your team can see the entire process from one vantage point, they spot issues faster. When adjustments are within arm's reach, they correct problems sooner. And when the layout makes sense, training new operators takes days instead of weeks.

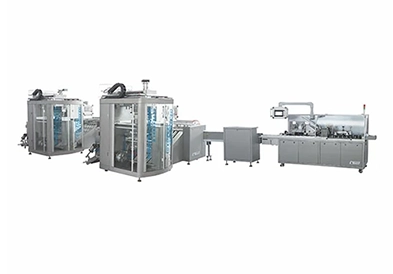

In a crowded production facility, every square meter counts. The DXD-PL1200 packs an entire packaging line—from tablets to sealed sachets to finished cartons—into a footprint that doesn't require expanding your building. The DXD-PL1200E sachet section measures 2200mm × 1900mm × 2300mm, while the SYZ-120 cartoning section runs 4200mm × 1050mm × 1600mm. Together, they form a continuous line that fits within existing floor plans while delivering high-speed output.
A simple line is also a maintainable line. When components are easy to reach, routine cleaning and preventive maintenance happen more consistently. The DXD-PL1200's layout prioritizes access to sealing rollers, film paths, and filling stations, so your team can keep the line running at peak performance without disassembling half the machine.
Here's where many production lines fail the simplicity test: the human-machine interface. If operators need to scroll through layers of menus just to adjust bag length or sealing temperature, you're not saving time—you're creating bottlenecks.
The DXD-PL1200 uses servo and stepper motors with touch screen and PC programmable control systems. The interface is designed to be intuitive and easy to understand, with a high degree of automation that reduces the number of decisions operators need to make. You're not programming a robot; you're selecting parameters from a clear, visual interface.
The term gets thrown around a lot, but in this context it means the system anticipates what you need. The touch screen presents the most frequently adjusted parameters front and center. The programmable controls remember your settings for different product runs. And the photoelectric eye system automatically detects empty packages so you don't waste film or cartons.
When you automate routine decisions—like rejecting empty sachets or adjusting sealing temperature based on film type—you remove the most common source of errors: human judgment under pressure. The DXD-PL1200's control system handles these variables automatically, so your operators focus on monitoring rather than micromanaging.

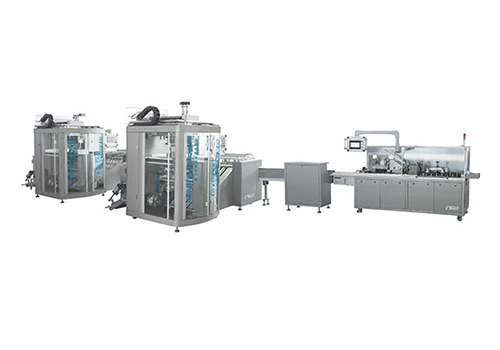

Sealing is where many packaging lines reveal their true complexity. Too hot, and you melt through the film. Too cold, and the seal fails. Inconsistent pressure, and you get leaks. The DXD-PL1200 addresses this with roller heat sealing and four-side sealing technology.
Four-side sealing means the sachet is sealed on all four edges, creating a stronger, more professional-looking package. The roller heat sealing system applies consistent temperature and pressure across the entire seal area, reducing the variability that plagues less sophisticated systems.
You shouldn't have to chase exotic films just to keep your line running. The DXD-PL1200 works with a range of standard packaging materials: PET/AL/PE, PET/PE, NY/AL/PE, NY/PE, and more. This flexibility means you can source film from multiple suppliers without worrying about compatibility issues. The machine accepts film rolls with a maximum width of 1200mm and a core diameter of 76mm.
The sachet section runs at 20-40 bags per minute per lane, with 6-10 lanes depending on your configuration. That translates to 120-400 bags per minute total output. The cartoning section matches this pace at 30-100 cartons per minute. The line is designed so neither section becomes a bottleneck—sealing speed and cartoning speed are balanced for continuous flow.
One of the biggest sources of complexity in packaging is changeover. Traditional lines require physical mold changes to switch between bag sizes, which means downtime, tool storage, and skilled technicians.
The DXD-PL1200 takes a different approach. There is no need to change the mold—only fine-tuning is required to switch between different specifications and sizes. The bag size range covers length 50-150mm and width 30-105mm, giving you flexibility across a wide range of tablet counts and package formats.
The filling system handles 1-2 tablets per pack with a filling capacity of 1-50 grams per bag. Whether you're packaging small desiccants or larger tablet doses, the adjustment is straightforward. The servo-driven filling mechanism ensures accuracy across the range without complex recalibration.
The cartoning section handles a dimensional range of (70-180)mm × (35-85)mm × (14-50)mm for cartons. Leaflet insertion is also flexible, with unfolded leaflet sizes from (80-250)mm × (90-170)mm and fold ranges of 1 to 4 folds. This means you can adapt the line to different market requirements—from retail-ready packaging to bulk cartons—without major reconfiguration.
The DXD-PL1200 is designed for small and medium-sized bags of loose, non-sticky granular items with metering requirements. That description covers a surprisingly broad range of products:
Pharmaceuticals: Chinese patent medicines, fine pellets, tablet doses
Food: Granular seasonings, nutritional supplements, powdered drinks
Daily Chemicals: Desiccants, small granular cleaning products
The common thread across these applications is the need for accurate metering, reliable sealing, and high-speed output. The DXD-PL1200 delivers on all three without making the operator's job harder.
| Parameter | DXD-PL1200E (Sachet Section) | SYZ-120 (Cartoning Section) |
|---|---|---|
| Lanes / Speed | 6-10 lanes, 20-40 bags/min/lane | 30-100 cartons/min |
| Filling Capacity | 1-50g per bag | 1-12 sachets per carton |
| Bag / Carton Size | L:50-150mm, W:30-105mm | (70-180)×(35-85)×(14-50)mm |
| Film / Carton Material | PET/AL/PE, PET/PE, NY/AL/PE, NY/PE | 250-350g/m² carton board |
| Power Supply | 380V 3P 4W 50Hz | 220V 50Hz |
| Power Consumption | 18KW | 2.2KW |
| Air Consumption | 0.8MPa, 0.8m³/min | ≥0.6MPa, 260-300L/min |
| Dimensions (L×W×H) | 2200×1900×2300mm | 4200×1050×1600mm |
| Weight | 2000kg | 1600kg |
Q: What types of products can this line handle?
A: The DXD-PL1200 is designed for loose, non-sticky granular items with metering requirements—pharmaceutical tablets, fine pellets, Chinese patent medicines, desiccants, and similar products. The filling range of 1-50g per bag covers most small to medium-sized sachet applications.
Q: How fast is the line in real-world production?
A: The sachet section runs at 20-40 bags per minute per lane. With 6-10 lanes, total output ranges from 120 to 400 bags per minute. The cartoning section matches this at 30-100 cartons per minute, so the line maintains continuous flow without bottlenecking.
Q: What does "no mold change required" actually mean for changeover time?
A: It means switching between bag sizes or product types requires only fine-tuning adjustments, not physical mold replacement. Changeovers that might take hours on traditional lines are reduced to minutes, significantly improving overall equipment effectiveness.
Q: What film materials are compatible with the sealing system?
A: The machine handles PET/AL/PE, PET/PE, NY/AL/PE, NY/PE, and similar laminated films. The roller heat sealing system adjusts to different film thicknesses and compositions, providing consistent seals across material types.
Q: How does the photoelectric eye system improve efficiency?
A: It automatically detects empty packages and prevents them from entering the cartoning section. This saves packaging materials, reduces waste, and prevents jams that would otherwise require operator intervention to clear.
Choosing an automatic tablets production line isn't just about speed—it's about finding a system that fits your products, your floor space, and your team's capabilities. The DXD-PL1200 combines high-speed output with genuine operational simplicity: a compact layout, intuitive touch-screen controls, tool-free changeovers, and reliable four-side sealing that doesn't require constant babysitting.
Whether you're packaging pharmaceutical tablets, nutritional supplements, or granular food products, the DXD-PL1200 High Speed Tablets Production Line offers the flexibility to handle a wide range of formats while keeping your operators focused on what matters—maintaining quality and meeting production targets.
Contact the manufacturer for a production line assessment and customized configuration → their engineering team can evaluate your product specifications, required output rates, and facility layout to recommend the optimal lane configuration and options for your specific application. Get a line that delivers simplicity without sacrificing speed.
