You're running a nutraceuticals or supplements production line, and packaging is becoming the bottleneck. Manual filling is slow, inconsistent, and prone to error. A nutraceuticals & supplements packaging machine solves that problem by automating the entire process—from measuring and filling to sealing and labeling—in one continuous operation. It's a straightforward piece of equipment that turns a labor-intensive manual task into a high-speed automated workflow. This guide covers the machine types, key specifications, and selection criteria you need to know. No unnecessary complexity—just the practical information to help you make the right choice for your production line.
The machine takes granular materials—think herbal extracts, vitamin powders, probiotic blends, or supplement formulations—and packages them into individual sachets or pouches. It handles the entire sequence automatically: measuring the precise dose, filling it into a formed pouch, sealing the pouch on four sides, and optionally printing batch numbers or cutting dotted lines for easy tearing. What used to require multiple operators and separate machines now happens in a single pass.
The process starts with a roll of packaging film—typically PET/AL/PE, PET/PE, NY/AL/PE, or NY/PE. The film is formed into a tube, filled with the precise amount of product, sealed on four sides using high-precision heat-sealing rollers, and cut into individual sachets. The result is a flat, firm, professionally finished pouch ready for retail shelves.
This type of machine is designed for loose, non-sticky granular materials. Common applications include Chinese medicine granules, monosodium glutamate, sugar, oatmeal, coffee, and washing powder. For nutraceuticals and supplements, think protein powders, creatine, pre-workout blends, herbal extracts, and probiotic formulations.

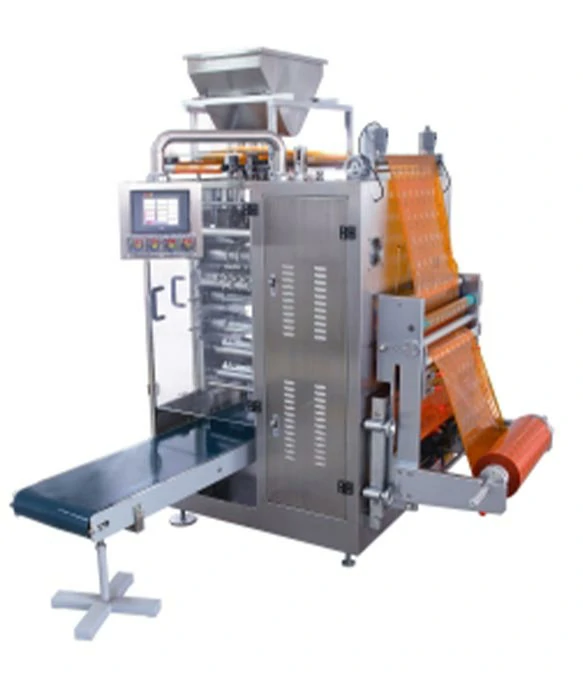

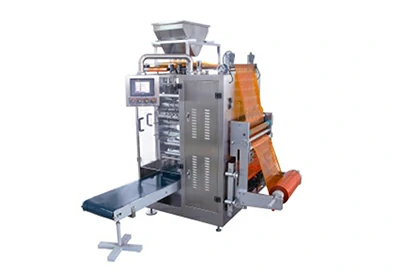

Single-lane machines are fine for small-batch production. But if you're scaling up, multi-lane is the game-changer. The DXDO-K500E is a multitrack system capable of running multiple lanes simultaneously, dramatically increasing output without requiring additional floor space.
With a packing speed of 40-60 times per minute and multi-lane capability, throughput scales with the number of lanes. More sachets per minute means lower cost per unit and faster return on investment.
The two-way synchronous feeding mechanism supports multi-row synchronous or single-row stepless fine adjustment. That means you can run all lanes at once for high-volume orders, or adjust to a single lane for smaller batches or product trials.
In nutraceuticals, dosage accuracy isn't optional—it's a regulatory requirement. The machine's five-axis servo synchronous drive system, combined with PLC control and a human-machine interface (HMI), ensures that every actuator is precisely and automatically synchronously positioned.
The triangular measuring cup metering system ensures consistent fill volumes. With a filling capacity range of 0.5-60ml, it handles everything from ingredients to larger-dose formulations.
The photoelectric tracking system ensures automatic alignment of double-sided patterns on the packaging bag. If your sachets have branding or nutritional information printed on both sides, this feature ensures everything lines up correctly—every time.
Four-side sealing is the gold standard for sachet packaging. It creates a flat, professional-looking pouch with strong, airtight seals on all four edges. This is critical for nutraceuticals and supplements, where moisture, oxygen, and light can degrade active ingredients.
The machine uses high-precision integral rolling heat-sealing rollers. The result is a seal that's firm, flat, and consistently strong across every sachet—no weak spots, no leaks.
Different packaging films require different sealing temperatures. The machine's high-precision sealing temperature automatic control function adapts to various film types, ensuring optimal seals whether you're using PET/AL/PE for oxygen barrier or NY/PE for mechanical strength.
| Specification | DXDO-K500E | Why It Matters |
|---|---|---|
| Pouch length | 50-120mm (adjustable) | Fits different sachet sizes |
| Pouch width | 40-105mm | Accommodates various product volumes |
| Packing speed | 40-60 times/min | Determines throughput |
| Filling capacity | 0.5-60ml | Range of dose sizes |
| Max film width | 500mm | Determines sachet size flexibility |
| Total power | 10Kw | Power requirements |
| Dimensions | 1700×1400×1970mm | Floor space needed |
| Machine weight | 1200kg | Installation and handling |
Beyond the core functions, modern packaging machines offer features that make production easier and more flexible. The DXDO-K500E supports dotted line knives, flat knives, or special knives for bag cutting, depending on your packaging needs. It also accommodates various alarm requirements and other additional functions to meet personalized needs.
The machine can print batch numbers, expiration dates, and other variable data directly onto the sachet during the packaging process. This eliminates a separate labeling step and ensures traceability.
The optimized film connection mechanism makes film replacement and maintenance more convenient. Less downtime for film changes means more uptime for production.
What's the difference between two-side and four-side sealing?
Two-side sealing creates a pouch sealed on two edges with the other two formed by the fold of the film. Four-side sealing seals all four edges independently, resulting in a flatter, more professional-looking pouch with better airtightness.
How do I choose between single-lane and multi-lane?
Single-lane is suitable for small-batch or specialty production. Multi-lane is the choice for scaling up—higher throughput, lower cost per unit, and the flexibility to run multiple products simultaneously.
What packaging films can this machine handle?
The DXDO-K500E supports PET/AL/PE, PET/PE, NY/AL/PE, and NY/PE. The choice depends on your product's barrier requirements—AL layers provide oxygen and light protection; PE layers provide sealability and mechanical strength.
How accurate is the dosing system?
The triangular measuring cup metering system supports multi-row synchronous or single-row stepless fine adjustment, ensuring consistent fill accuracy across all lanes.
Choosing a packaging machine comes down to three factors: your product type, your production volume, and your packaging requirements. Request a quote or machine consultation → —SanYang's team can help you select the right configuration for your specific nutraceuticals or supplements application.
This article was written with the assistance of AI to organise technical data from SanYang Technology's product documentation and industry standards.

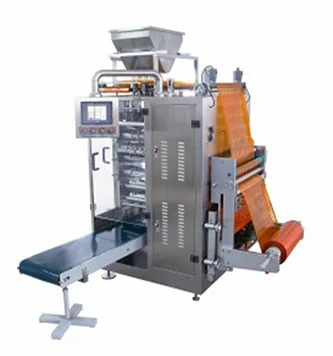

SanYang Technology specializes in the development and manufacturing of packaging machinery for the pharmaceutical, food, and daily chemical industries. The DXDO-K500E Multitrack Granule Packing Machine is designed for loose, non-sticky granular materials including nutraceuticals, supplements, and functional foods. It features a five-axis servo synchronous drive system with PLC control, high-precision four-side sealing technology, a photoelectric tracking system, and support for multiple packaging film types. With a packing speed of 40-60 cycles per minute, filling capacity of 0.5-60ml, and multi-lane capability, it's built for production scalability. SanYang's machines are used across pharmaceutical, food, and chemical industries worldwide. Connect with SanYang to discuss your product specifications, packaging requirements, and production targets.
